- Stock: In Stock
- Model: U6206
- Weight: 220.00g
- Dimensions: 100.00mm x 60.00mm x 25.00mm
Portable Current Voltage Signal Generator DC 0~10V 0~20mA
Description:
Loop calibrators are a type of electrical calibrator specifically designed to troubleshoot 0-10V volt or 4-20 mA current loops. Current loops are extremely common in industrial measurement and control applications due to their ease in setting up, wide power supply requirements, low noise output, and ability to be transmitted over great distance without loss. Loop calibrators are capable of measuring current, sourcing current to unpowered devices in a loop, as well as simulating the operation of loop-powered 0-10V or4-20 mA transmitters.
Applications:
It is used the current and voltage source for testing and inspection of electric equipments such as Interface Analog Simulator for PLC and Panel Debugging, Device Testing, Frequency Converter, Flow Valve.
Features:
- Power Supply: external micro USB-5V or external power DC 15-30V, each way makes the generator work, both ways also can be connected at the same time.
- Voltage Output: 0-10V, precision is 0.01V, rotate the encoder knob to adjust output voltage, can be calibrated.
- Current Output: 0-22mA, precision is 0.01mA, rotate the encoder knob to adjust output current, can be calibrated.
- Multiple Display: just push the small botton to switch the display mode between voltage and current, you can also follow the instructions to switch 0-100 percent or 0-50HZ display.
- Product Dimension: 3.94” x 2.36” x 0.98” (100mm x 60mm x 25mm), portable and convenient. Note: optional 803040 battery expansibility (battery not included).
Specifications:
|
Current output |
0-22mA adjustable |
|
Current output accuracy |
0.01Ma,can be calibrated |
|
Current sampling resistance |
10-500Ω,can be short-circuit |
|
Voltage output |
0-10VDC adjustable |
|
Voltage output accuracy |
0.01V,can be calibrated |
|
Voltage output current |
Max.100mA,have short-circuit protection |
|
Operating power supply |
15-30v external power supply via wiring terminals; 5v micro USB power supply; 1000mAH re-chargeable battery inside. |
|
LED display |
4 digits, two decimal points |
|
Display mode |
Current/volt. Value display; 0-100%percentage display;0-50.oHz display. |
|
Adjusting mode |
One turn: 20xpulses, precision encoder. |
|
Power consumption |
External 15-30V power supply: about 1W;Micro USB5V power supply:0.2A/1A |
|
Dimension |
LxWxH:100x60x25mm |
|
Operating temperature |
-20 to +50℃ |
|
Storage temperature |
-25 to +80℃ |
|
Humidity |
80% R.O non-condensation |
- High accuracy, 2 decimal point output, 0.01V, 0.01mA.
- 4 digits brighter LED display, two decimal points accuracy, output can be calibrated.
- Support external 15-30V operating power supply, 5V micro USB port, and Built-in lithium battery
- Have rough and fine adjusting modes, the rotation turns is settable.
- Have one switching button to switch between current and voltage output.
- Current and voltage output simultaneously, output wiring terminals are independently.

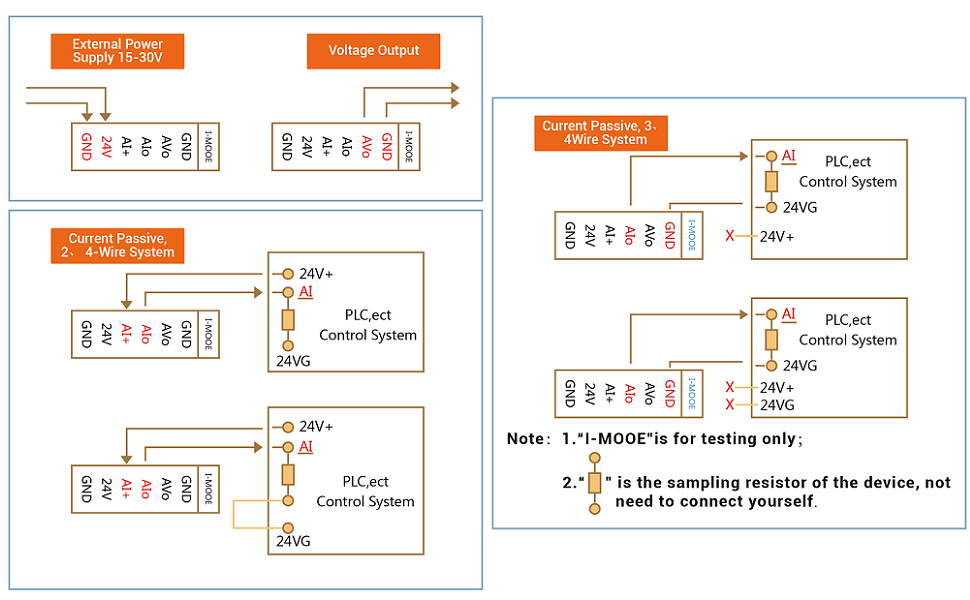

- Have 2-wire, 3-wire, 4-wire current outputs.(Support active and passive)
- Multiple output range: 0-3.3V, 0-5V, 1-5V, 4-20mA,0-20mA, etc. Output range is settable and programmable.
- Programmable multiple display mode: current voltage value display, 0-100% display, 0-50.0Hz display.
- Output terminals have short-circuit protection, power supply terminals have polarity reverse connection protection.
- Infinite rotation knob, high accuracy long life span encoder to adjust output. Mush more stable and accurate than the potentiometer type.
- Small size comfortable external shape: alloy adjustable knob, elegant external case, easy to carry.
- Pluggable wiring terminal blocks, very convenient to do wire connection.
